Brief Introduction:This is a multifunctional machine combining CHOVYTING CW-800LP fully automatic soft loop handle bag making machine, CW-800SP fully automatic patch handle bag making machine and CW-800PD fully automatic draw string handle bag making machine. It is the best choice for increased capacity and space-saving benefits.
Machine main device as following:
1.auto load unwind with auto tension controler and EPC device
2.Top folding and bottom gusset
3.Continuous sealing device
4. Auto conveyor table
Technical data:
machine details
SAMPLE BAG:
Features:
1.With servo motor drive, PLC & touch screen control
2.Machine frame is made of prefabricated flame cut sheet 12mm thick to ensure the machine rigidity.
3.Any different type of the bag with several use as options, easy to replace

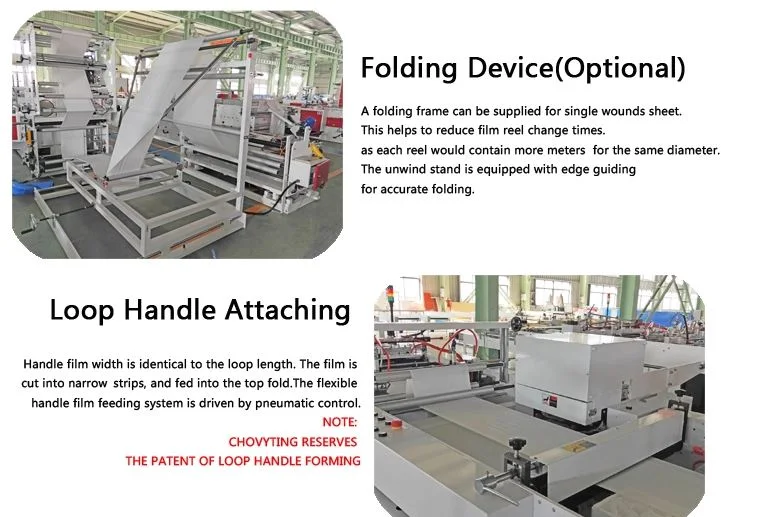

4.Automatic loop handle feeding and sealing function, to save labor cost & space for your factory
5.With oval handle punch, enable the machine to make die cut handle bag as well
Optional:
1. Double sealing knife
2. Bottom sealing knife
3. Air hole punching unit
4. Triangle folding device
Packing & loading
Exhibition:
About us:
This is a multifunctional machine combining CHOVYTING CW-800LP fully automatic soft loop handle bag making machine, CW-800SP fully automatic patch handle bag making machine and CW-800PD fully automatic draw string handle bag making machine. It is the best choice for increased capacity and space-saving benefits.
It's user friendly ergonomic design, rigid construction with resistant to vibration
Recipe and production control system with special PLC system,
Easy changeable single and double sealing bar system
Machine main device as following:
1.auto load unwind with auto tension controler and EPC device
2.Top folding and bottom gusset
3.Continuous sealing device
4. Auto conveyor table
Technical data:
Model | CW-800ZD |
Length of bag making | 250-700mm |
width of bag making | 250-600mm |
Speed of patch handle bag making | 60pcs/min |
Speed of die cut handle bag making | 80pcs/min |
Speed of soft loop handle bag making | 60pcs/min |
speed of poly draw handle bag making | 65pcs/min |
Top fold | 50-75mm |
bottom gusset | 20-60mm |
Length of soft loop handle film | 360mm |
Thickness of loop film | 0.10-0.25mm |
Length of patch film | 150mm |
Thickness of patch film | 0.10-0.15mm |
Width of draw rope tape | 25mm(doubel layer) |
Thickness of draw tape | 0.04-0.15mm |
total power | 10kw |
weight of machine | 3200kgs |
overall dimension | 8000x3100x1870 mm |
air compressor | 6HP |
SAMPLE BAG:
Features:
1.With servo motor drive, PLC & touch screen control
2.Machine frame is made of prefabricated flame cut sheet 12mm thick to ensure the machine rigidity.
3.Any different type of the bag with several use as options, easy to replace
4.Automatic loop handle feeding and sealing function, to save labor cost & space for your factory
5.With oval handle punch, enable the machine to make die cut handle bag as well
Optional:
1. Double sealing knife
2. Bottom sealing knife
3. Air hole punching unit
4. Triangle folding device
