Brief Introduction:
CW-800SDP High speed(100-120pcs/min) side sealing multifunction handle bag making machine.
1.Soft loop handle bag 100pcs/min
2.Patch handle bag 100pcs/min
3.Die cut handle bag 120pcs/min
Whole machine driven by 6pcs servo motor(Yasakwa Japan), as following
Machine device as following:
1.auto load unwind with auto tension controler and EPC device
2.V Folder
2.Top folding and bottom gusset
3.Continous sealing device
4.soft loop handle device
5.Patch handle device
6.D cut handle punch
7. Auto conveyor table
Technical data:
Features:
1.With servo motor drive, PLC & touch screen control
2.Machine frame is made of prefabricated flame cut sheet 12mm thick to ensure the machine rigidity.
3.Any different type of the bag with several use as options, easy to replace
4.Automatic loop handle feeding and sealing function, to save labor cost & space for your factory
5.With oval handle punch, enable the machine to make die cut handle bag as well
6.The collecting table is driven by AC motor, and the speed of the collecting table is controlled by the inverter
Optional:
1. Double sealing knife
2. Bottom sealing knife
3. pp knife
Packing & loading

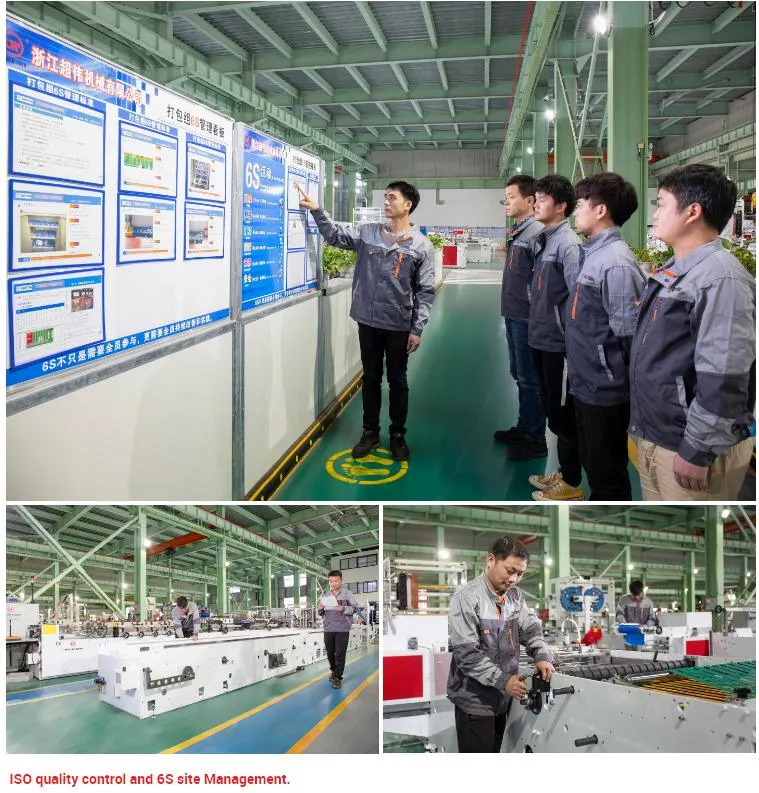

About us:
CW-800SDP High speed(100-120pcs/min) side sealing multifunction handle bag making machine.
1.Soft loop handle bag 100pcs/min
2.Patch handle bag 100pcs/min
3.Die cut handle bag 120pcs/min
Whole machine driven by 6pcs servo motor(Yasakwa Japan), as following
| Main film feeding | 2 pcs servo motors |
| soft loop forming | 1 pcs servo motor |
| soft loop feeding | 1 pcs servo motor |
| soft loop cutting | 1 pcs servo motor |
| Patch device | 1 pcs servo motor |
Machine device as following:
1.auto load unwind with auto tension controler and EPC device
2.V Folder
2.Top folding and bottom gusset
3.Continous sealing device
4.soft loop handle device
5.Patch handle device
6.D cut handle punch
7. Auto conveyor table
Technical data:
| Model | CW-800SDP |
| Length of bag making | 250-700mm |
| width of bag making | 250-600mm |
| speed of loop handle bag making | 100pcs/min |
| patch handle bag making | 100pcs/min |
| speed of die cut handle bag making | 120pcs/min |
| Top fold | 50-75mm |
| bottom gusset | 20-60mm |
| Length of loop handle film | 360mm |
| Thickness of loop handle film | 0.10-0.25mm |
| total power | 10kw |
| weight of machine | 3200kgs |
| overall dimension | 8000x3100x3870 mm |
| air compressor | 6HP |
Features:
1.With servo motor drive, PLC & touch screen control
2.Machine frame is made of prefabricated flame cut sheet 12mm thick to ensure the machine rigidity.
3.Any different type of the bag with several use as options, easy to replace
4.Automatic loop handle feeding and sealing function, to save labor cost & space for your factory
5.With oval handle punch, enable the machine to make die cut handle bag as well
6.The collecting table is driven by AC motor, and the speed of the collecting table is controlled by the inverter
Optional:
1. Double sealing knife
2. Bottom sealing knife
3. pp knife
Packing & loading
