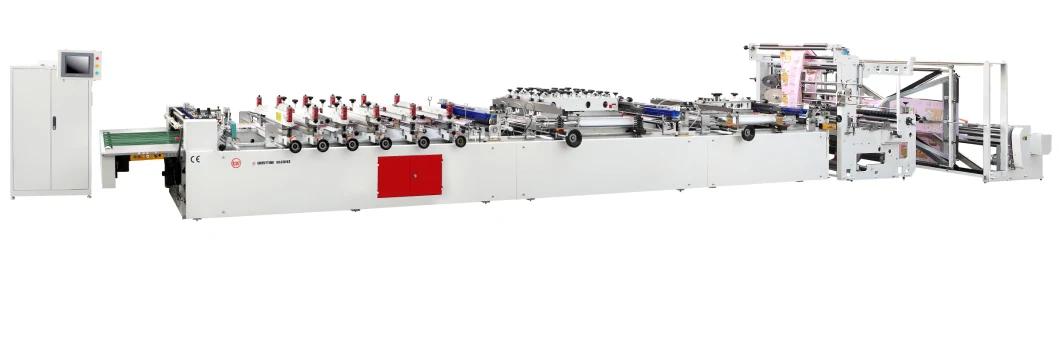

CWZD-600C+FD heavy duty multi-function laminated bag making machine + single sheet film folding stand up pouch
Brief introduction:
New design for producing laminated bag (single sheet folded stand up pouch and zipper bag),also can produce pet food bag popular in America and other countries.
FEATURE:
1. Air cylinder automatic loading device
2. Hangle hole puncher
Technical parameter:
Brief introduction:
New design for producing laminated bag (single sheet folded stand up pouch and zipper bag),also can produce pet food bag popular in America and other countries.
FEATURE:
- Folding, punch,bottom gusset and sealing automatic design
- Newly design feeding structure, high speed feeding no shake
- Special design bottom gusset device, easily to operate
- Double layers unwinding design, suitable for multi-function laminated bag
- Newly design zipper and stand up device
1. Air cylinder automatic loading device
2. Hangle hole puncher
Technical parameter:
| Type | CWZD-400C+FD | CWZD-500C+FD | CWZD-600C+FD |
| Unwinder width | 800mm | 1000mm | 1200mm |
| Bag making length | 70-380mm×6(N≤6) | 70-380mm×6(N≤6) | 70-380mm×6(N≤6) |
| Bag making width | 70-380mm | 70-480mm | 70-580mm |
| Bag making speed | 40-150pcs/min | 40-150pcs/min | 40-150pcs/min |
| Line speed | 35m/min | 35m/min | 30m/min |
| Total power | 38KW | 43KW | 48KW |
| Machine weight | 3900kg | 4100kg | 4400kg |
| Machine dimension | 12300X1750X1800mm | 12300X1950X1900mm | 12300X2050X2000mm |
