Heavy-duty self-supporting zipper bag making machine

  I\'v never Believed I am the Best, But I will try to be the Best For you                                       &n

Featured Products


I'v never Believed I am the Best, But I will try to be the Best For you
                                           ----- Ruian Binhai Plastic Packing Machinery Co.,LTD



Product Description

Features For Heavy Duty Stand Up Zipper Pouch Making Machine

1.  Suitable for kinds PE laminated film ,Paper Laminated, Alu. Laminated,and co-  extrude film
2.  To produce three side seal bags, stand up pouch,zipper pouch,
3.  EPC and double photocell tracking for unwinder
4.  Unwinder with automatic tension control



Main
Technical Parameters  For Stand Up Zipper Pouch Making Machine


ModelBHZD--600 BBHZD-500 B
Max.Diam eter of roll material 600mm 600mm
Max.width of roll material 1200mm 1000mm
 bag size width 70-600mm70-500mm
 bag size length 70-380mm x N ( N6) 70-380mm x N ( N6)
 bag-making speed 30-150pcs/min 30-150pcs/min
Temperature control Normal temperature to 360 Normal temperature to 360
Total power 35kw 32kw
gas resource 0.6mPa(6kg/cm2 ) 0.6mPa(6kg/cm2 )
Cooling water 5L/min 5L/min
Machine weight 6000kg 5500kg
outline diameter  L11505*W2400*H1865mm L11505*W2300*H1865mm


Optional:
Double layer unwinder device
Punching device for handle





Detailed Photos





Pictures showing for Heavy Duty Stand Up Zipper Pouch Making Machine

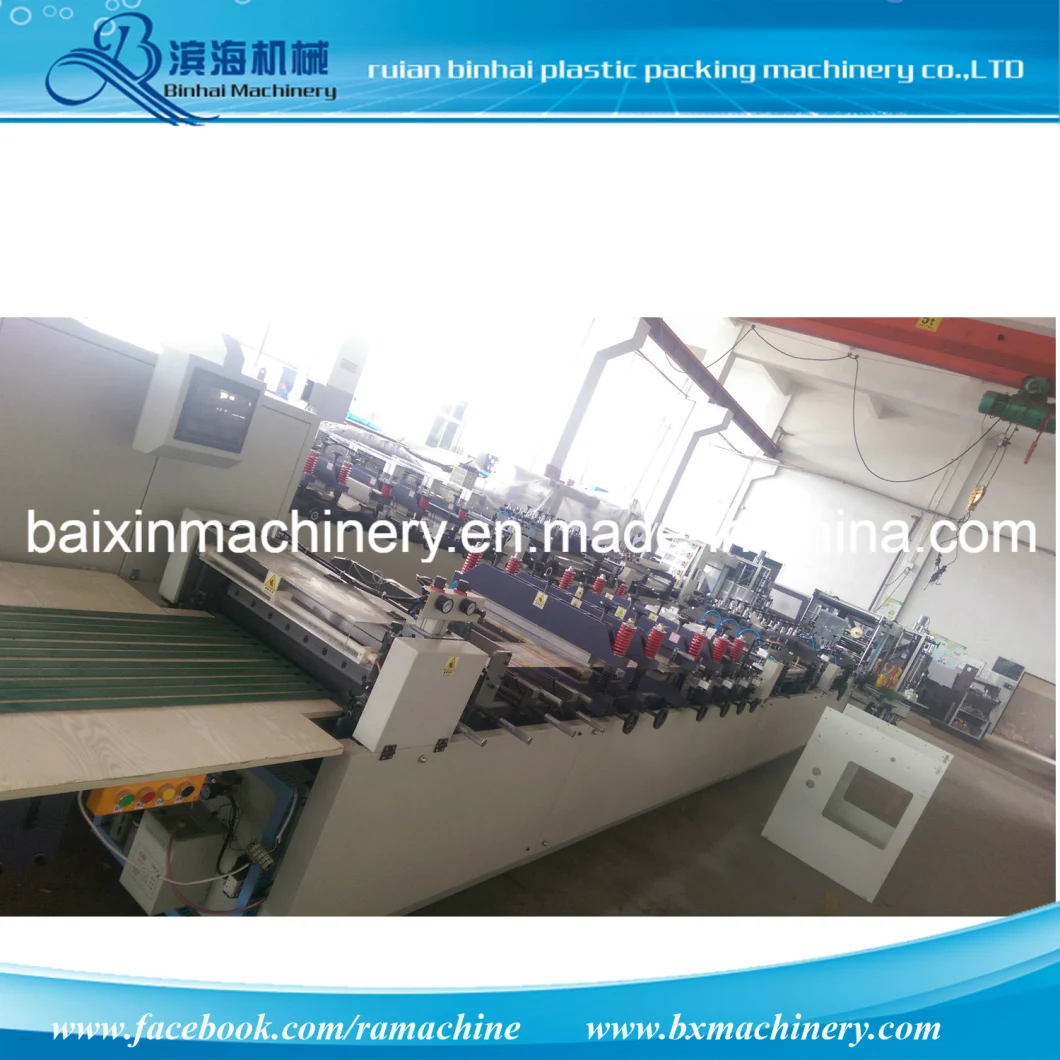

1) Central seal & Bottom seal Pouch making machine

Heavy Duty Stand up Zipper Pouch Making Machine

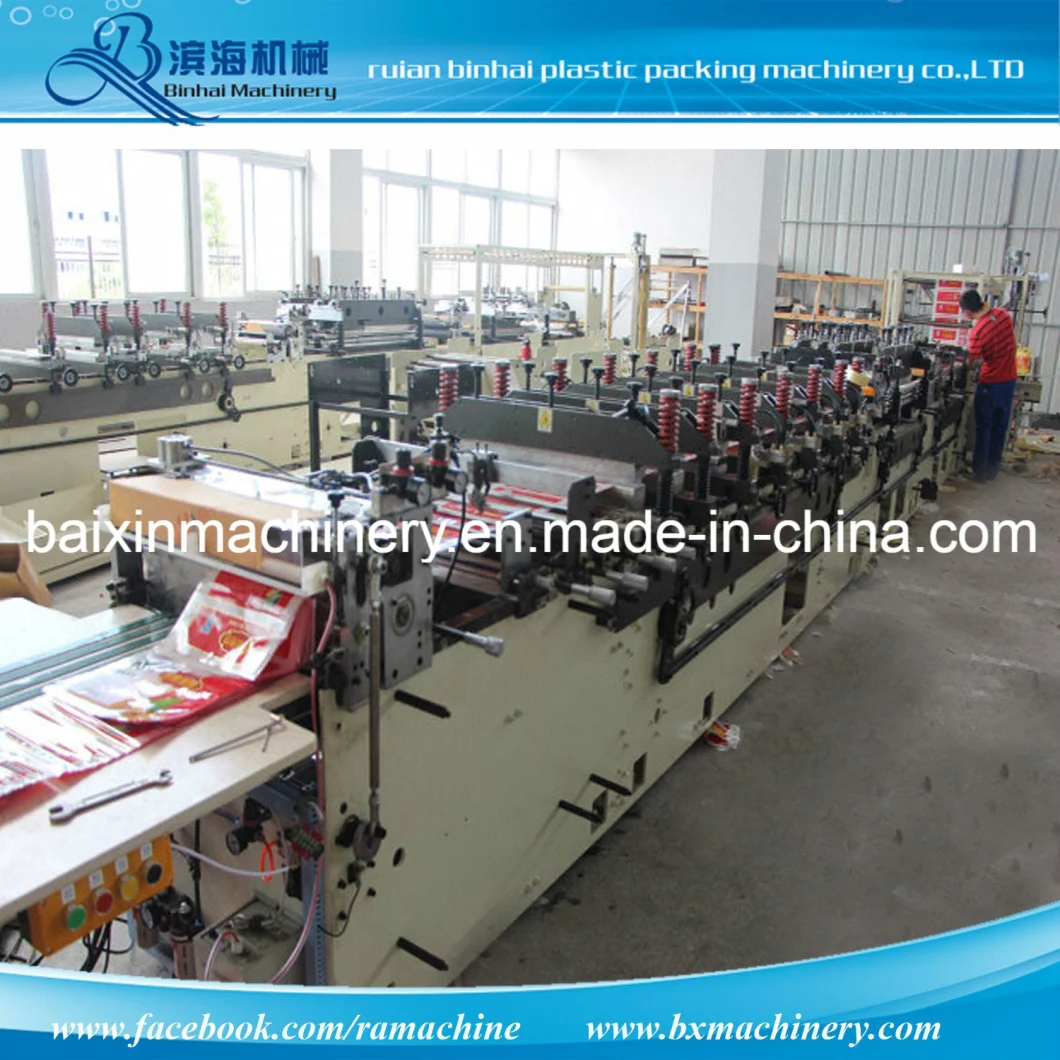

2) stand Up Zipper Pouch Making Machine

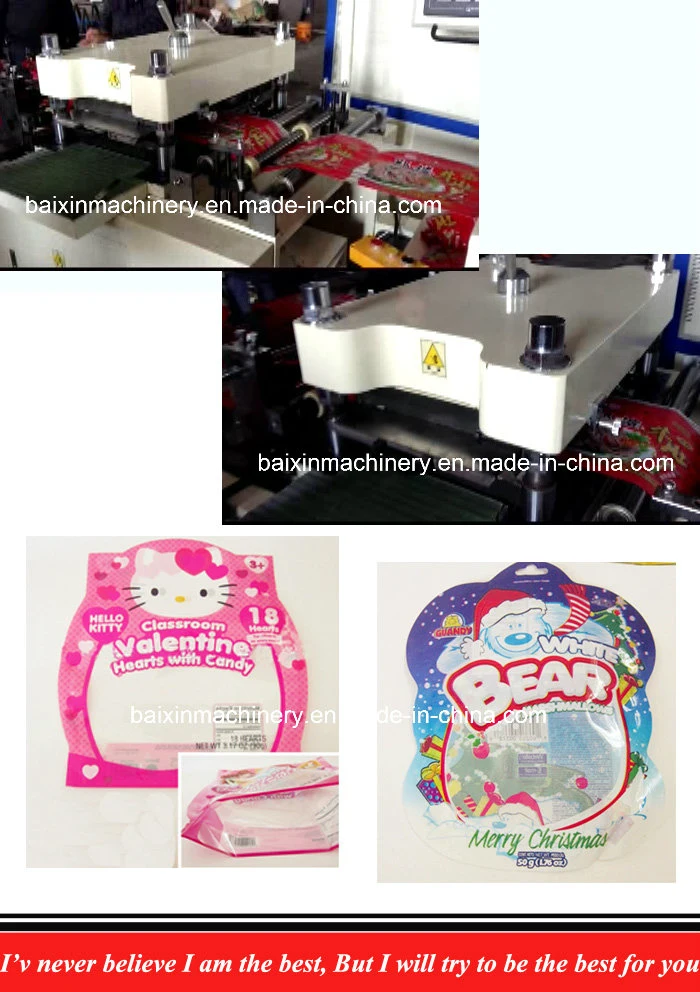

Sample Of Patch Bottom stand Pouch .
If the Bottom have Printing, we suggest , Bottom Folded Stand Pouch

Heavy Duty Stand up Zipper Pouch Making Machine


Sample Of Patch Bottom stand Pouch .
If the Bottom have Printing, we suggest , Bottom Folded Stand Pouch


Heavy Duty Stand up Zipper Pouch Making Machine
Irregular Shaped Pouch Making Machine

Heavy Duty Stand up Zipper Pouch Making Machine
Laminated Film Grape or Fruit Bag Making Machine

Heavy Duty Stand up Zipper Pouch Making Machine





Company information
We are special produce full production of plastic bag, including film blowing machine, bag making machine,
printing machine, coating machine, slitting machine, laminating machine, ETC.


Our service
1) All Our Machines with CE certificate
2) Machines exported to Canada, USA, UAE, Russia, Africa,Asia , and so on
3) All machines will be examined and test before delivery
4) Offer you skillful knowledge on machines and If need, engineer will help you train workers how to operate
5) Delivery time for standard machine is 35 days , If urgent , talk with me .
6) Guarantee for one year , Long Life Services

Packing and shipping
  1. Machines will Packed with Waterproof oil , stretch Film
  2. If need , Fumigation wooden case as option
  3. Delivery date: 35days after receipt of down payment.
  4. Shipment from Ningbo port ,China By Sea


RFQ:

  1. Are you a factory or Trading Company
   We are a factory with experienced exporting products. We also help clients
   To look for products which they can not sure of.
  1. Where is your factory Located
  Our Factory Located in Ruian City ,Zhejiang Province ,China .
  It is about 40minutes by plane from Shanghai,  about 5 hours by train from
  Shanghai .
  We are pleasured to pick up you when you arrived .
  1. How you work if I am not come to China
   Usually , I will offer you our All Government Certificates (all Certificates are got after Government persons' Strict Investigation to show
that we are a true exist company,

Then I will show you machines that you want to buy on computer by video and pictures , So that If you have any questions or Good Ideas on machines ,
we will discuss with engineers to offer you a well resolution .

When machines finished , If you are too busy to come To China , we can show you pictures and videos .If machines not good ,you can refuse to pay us .
Surely , If it is no problem , you should pay us the rest 70% Before shipping .





IF Have more questions , Contact with me !!!
THE ENDING ...........THANKS FOR YOUR READING
